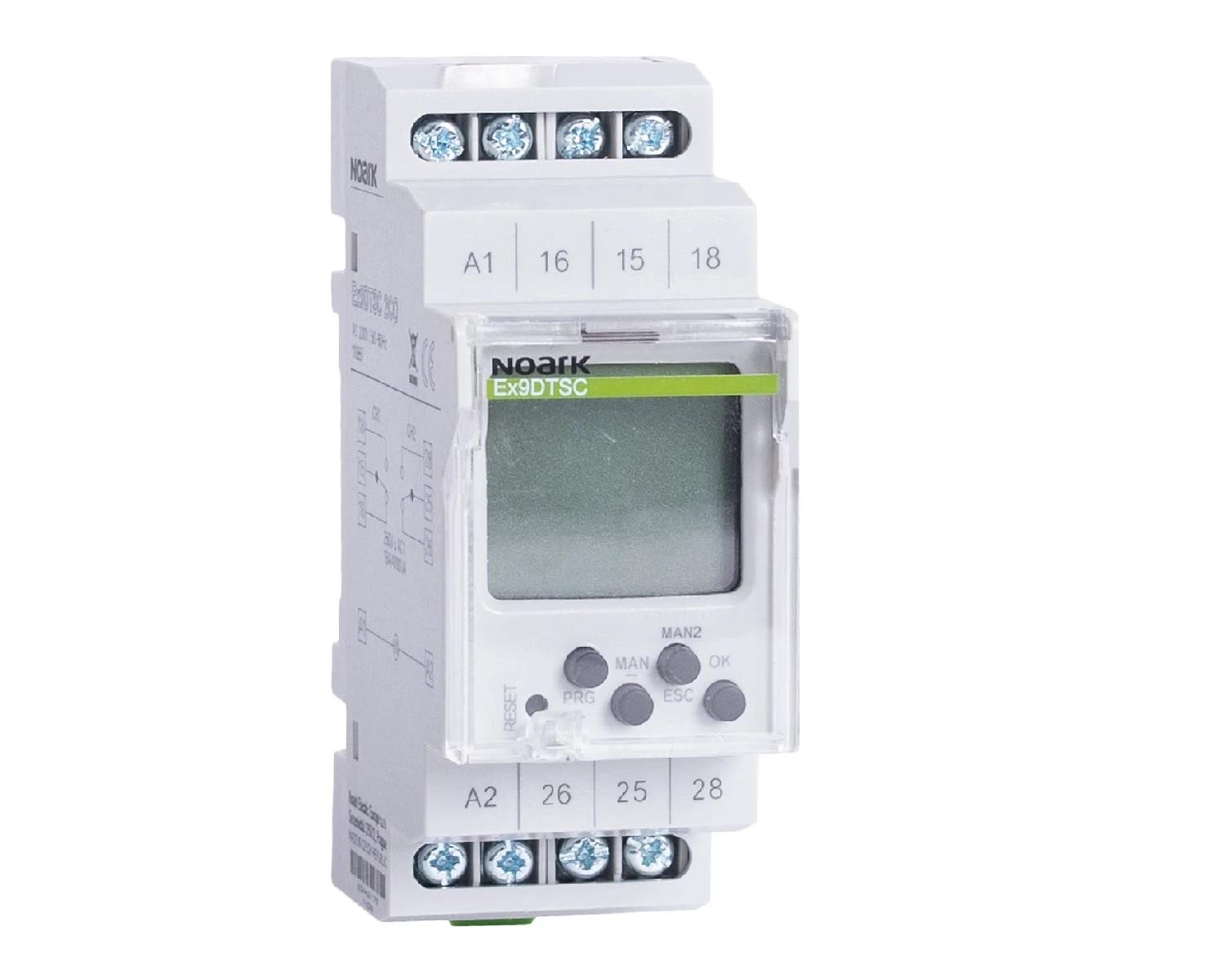

Installation Digital Time Switch Ex9DTSC 1CO 230V

110556

8592765105561

Installation Digital Time Switches Ex9DTS are suitable for time control and switching in various residential and industrial applications. They are fully programmable in every 1 minute and they are working in weekly and holiday switching program. With these properties, it is possible to set the switching pattern exactly to as required and save energy costs. To determine the current status and setting up the time switch each device is equipped with LCD display.

Nájsť predajňu

Mounting method	DIN rail
Number of channels	1
Supply voltage [V]	230
Voltage type of supply voltage	AC
Frequency supply voltage [Hz]	50/60
Autonomy in years	3
Accuracy per day [s]	1
Text guidance in display	Áno
External programming	Nie
Memory card included	Nie
60 min. program	Nie
24 h program	Áno
Weekly program	Áno
Annual program	Áno
Holiday program	Áno
Impulse program	Áno
Cycle program	Áno
Astro program	Nie
Random program	Áno
Hour meter	Nie
Mains synchronous	Nie
Quartz controlled	Áno
Radio-controlled	Nie
Radio-controlled (DCF77)	Nie
GPS (global positioning system)	Nie
Contact type	Change-over contact
Shortest switching time channel 1 [min]	0.1667
Shortest switching time channel 2 [min]	-
Number of memory locations	100
Automatic switching summer-/winter time	Áno
Manual operation	Áno
External pushbutton input	Nie
Nominal switching current at 250 V AC [A]	16
Potential free switch contact	Áno
Degree of protection (IP)	IP10
Width in number of modular spacings	2
Width [mm]	35.6
Height [mm]	90
Depth [mm]	64
Power loss [W]	3
